1. Non-Invasive Hemodynamic parameter measurement
2. High reproducibility by array sensor
3. 3-dimensional Pulse Image Analysis
4. Applied pressure Vs. Pulse pressure graph
5. Compare Before and After treatment
6. Cardiovascular parameter by PWA(Pulse Wave Analysis)
7. 1-axis robot system
1. 1축 로봇을 이용한 정밀 가압측정 시스템
2. 어레이 압력 센서를 통한 재현성 있는 혈관위치 확인
3. 3차원 맥영상 분석을 통한 객관적 맥상정보 제공
4. 정밀 가압조절에 따른 맥압 반응 그래프 제공
5. 치료 전/후 비교 메뉴
6. 맥파 분석에 의한 심박동 이상, 혈관 탄성 및 노화 관련 자료 제공
7. 좌우 관맥 측정

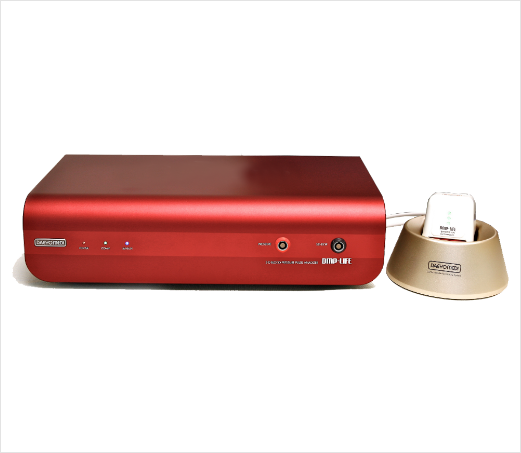

| Model name | DMP-Life | Pulse Pressure (tolerance, resolution) |
30~250gf (±10% 1gf, 1gf) |
| Product name | Blood Pressure Waveform Analyzer | Communication | USB to PC |
| Measuring Principle | Radial Tonometry Method | Principle of measurement | Tonometry |
| Medical Class | Class Ⅱ-a | Size(mm) | 420ⅹ250ⅹ100 |
| Power Supply | AC 110~220 V, 60Hz, Max 20VA | Weight | 4 Kg |
| Pulse Beat (tolerance, resolution) |
40~200bPm (±5% 1bpm, 1bpm) | Operation Environment | Temperature : 10 ~ 40℃ Humidity : 30 ~ 75% (non-condensing) |
| Applied Pressure (tolerance, resolution) |
0~500gf (±10% 1gf, 1gf) | Transport & Storage Environment |
Temperature : -20~ 60℃ Humidity : 20 ~ 85% (non-condensing) Atmospheric Pressure : 700 ~ 1060 hPa |
